RETAINING WALL REPAIR, STABILIZATION OF
WALL BACKFILLL AND BEACH EROSION PROTECTION |
Gorian
and Associates, Inc., provided geotechnical consulting services for
beach erosion protection and the strengthening of a 25-foot high,
unreinforced rock retaining wall. The wall also had no foundation and was backfilled with rubble
uncertified fill. The wall and

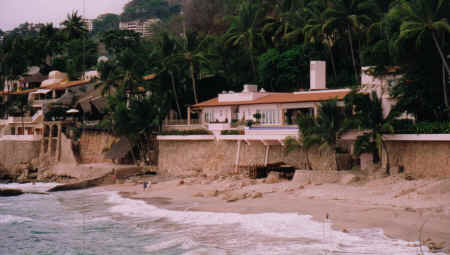

backfill supported a newly constructed residence and a cantilevered
infinity pool on the oceanfront in Puerto Vallarta, Mexico. |
Problems

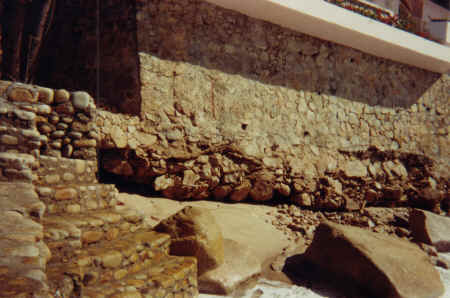

began during the El Nino winter of 1998 when storm waves eroded sand
from the beach front residence exposing the base of the rock wall and
removing sand from both under and behind the wall.
Settlement of the wall and backfill occurred resulting in
settlement and cracking of the patio decks above. |
If
left unrepaired, it was expected that the settlement would progress
toward the residence. Of additional concern was the potential for strong seismic
ground motion in the area and its effect on the wall, backfill,

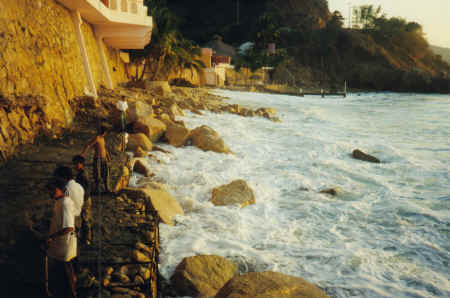

residence and pool. The beachfront is exposed to strong waves that
during high tide often reached the wall.

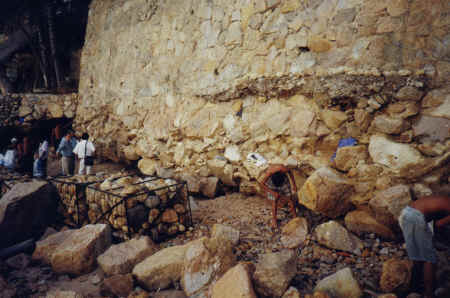

Rock filled wire baskets (gabbions) were placed as emergency
forms in front of the damaged wall. |
Concrete
was pumped behind the gabbions and under the exposed wall to provide
emergency temporary support. Construction of repairs and improvements
were further complicated by access problems to the beach.
No vehicle access was possible and all equipment and supplies had
to be transported to the beach by hand. This
involved breaking equipment down, hand carrying to the beach and
reassembling. Constant wave
activity prevented a sea approach by barge. |

Permanent repairs
involved constructing beach erosion protection on a sand cobble beach.
Bedrock was too deep to provide erosion protection by anchoring

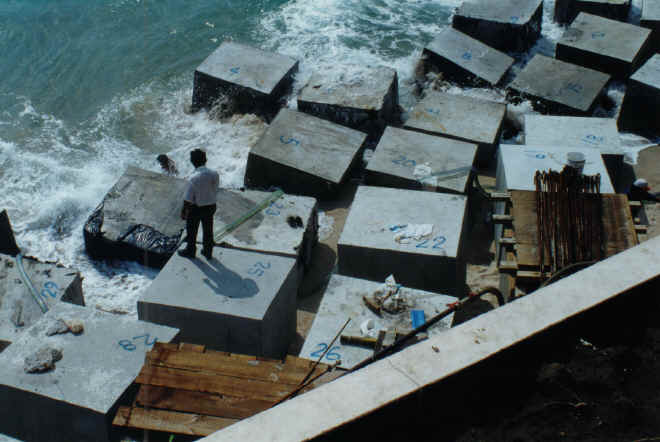

to bedrock. Large concrete armor
units were constructed on the beach and were spaced to provide a means
to absorb the wave energy rather than reflect the energy.
No cranes were accessible to the beach to move the units so the
units had to be built in place. The
absorption of wave energy created the
additional benefit of allowing more sand to be deposited on the beach
during periods of moderate to low wave energy.

Once wave protection was in place,
repairs could then safely begin on the wall.

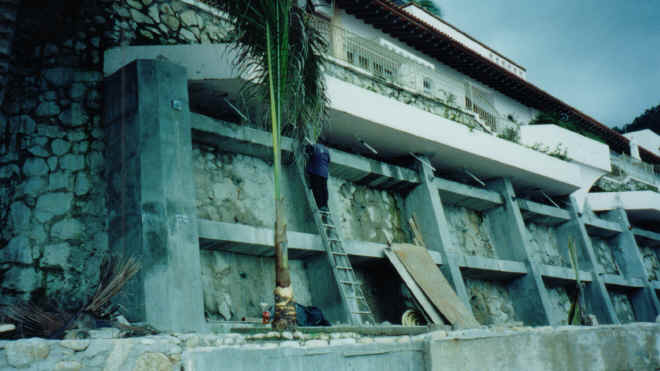

A grid of reinforced concrete columns and beams with tiebacks
were installed on the face of the existing wall to support the
unreinforced rock wall. The
uncertified wall backfill was then grouted from the bottom up to
stabilize the backfill that supported the residence and pool.

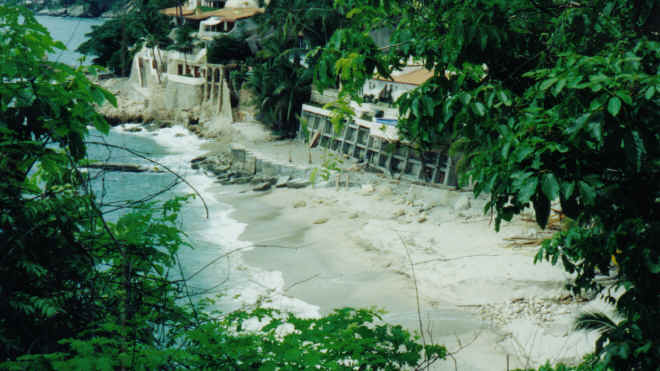

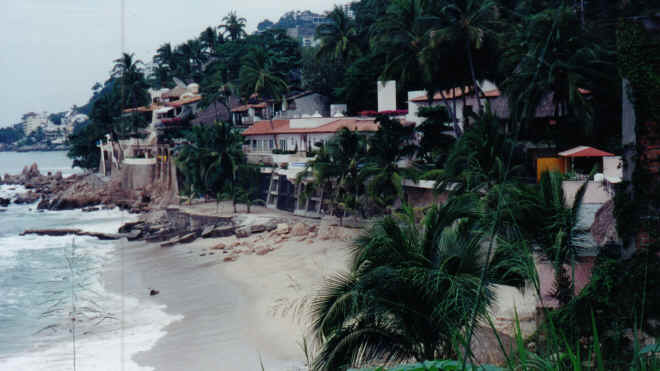

A sand beach was then constructed over the concrete armor units
using gravel, cobbles and filter fabric to improve the aesthetic look of
the protection.
