Beverly Canon Retail Center at 438
North Beverly Drive in the city of Beverly Hills
Gorian
provided geotechnical services for this urban infill project located in
Beverly Hills between North Beverly and Canon Drives, directly southwest
of Little Santa Monica. This is a high-profile retail space for upscale
tenants which fits into the existing urban fabric and sits above a

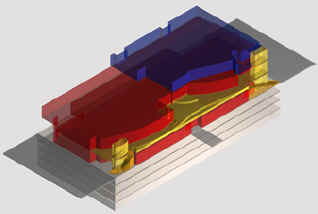

four-level underground parking structure. An outdoor pedestrian
circulation spine allows for second-level mid-block passage and provides
seating for restaurants as well as outdoor merchandising opportunities
for the flagship two-level tenants.

The project involves a three story
commercial/retail building constructed with the first level at street

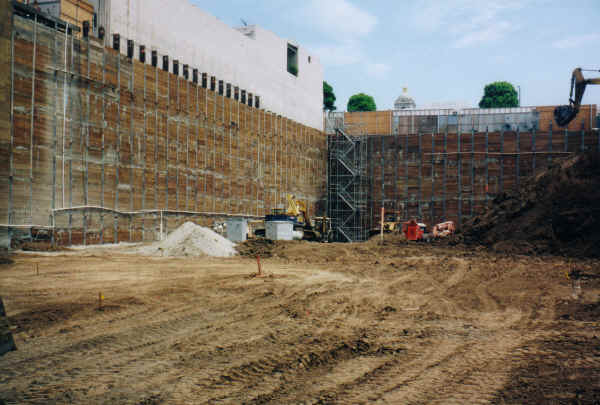

grade. The parking structure extends to a depth of 44 feet as measured
from the bottom of the pile cap excavations. Foundation loads at the
base of the parking structure are 20 kips per lineal foot for continuous
perimeter wall footings and 1,000 kips for column loads.
